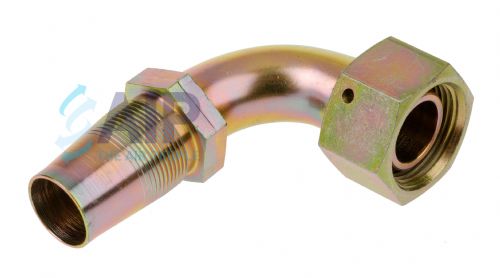

Reusable fittings - Metric Light Globe seal 24/60

Printer Friendly Page
Skip to Description
Skip to Prices

Description

R5 Reusable insert with dual 24 degree/60 degree cone seating (globeseal).

The length D shown in the table by each fitting is the length to subtract from the hose length to allow for the insert when making up an assembly to a specified length.

Prices (Click quantity for more availability info)

	Thread	Length - D (mm)	Hose Size	Order Code	Available	Each
Female Swivel - Straight
	M14 x 1.5	31	-05	117949	0	£19.18
	M16 x 1.5	33	-06	117950	0	£19.97
	M18 x 1.5	36	-08	117951	0	£20.87
	M22 x 1.5	36	-10	117952	0	£22.85
	M26 x 1.5	41	-12	117953	0	£21.77
	M30 x 2	39	-16	117954	0	£35.58
	M36 x 2	37	-20	117955	0	£52.47
	M45 x 2	37	-24	117956	0	£76.93
Female Swivel - Elbow 45 deg
	M22 x 1.5	51	-10	117961	0	£41.98
	M30 x 2	60	-16	117963	0	£69.22
	M18 x 1.5	43	-08	117967	0	£42.32
	M26 x 1.5	63	-12	117969	0	£56.55
	M36 x 2	69	-20	117971	0	£72.80

(All Prices Exclude VAT)
