Hose Tail Swivel - Brass Female BSPP 1/8" - 2"

Printer Friendly Page
Skip to Description
Skip to Prices

Description

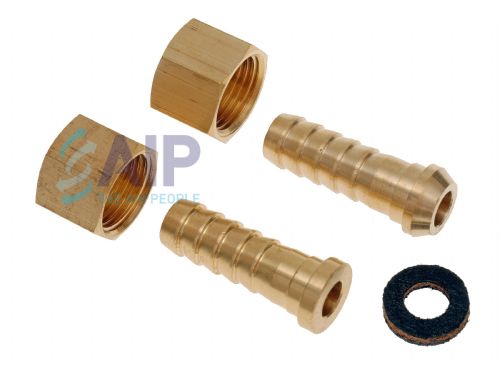

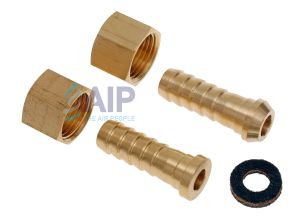

Two part brass swivel hosetail adaptor available with a flat or coned lining. Gives a female parallel BSP thread with a flat face or 60 degree cone.

Nut and lining must be ordered separately.

Leather washer must be also be ordered with flat lining fitting to seal.

At AIP we offer a wide range of fittings to suit different types of hose - whatever your requirements please contact us and a member of our team will be happy to help in any way.

Prices (Click quantity for more availability info)

	IHP Ref	Nut (BSPP)	Hose ID	Order Code	Each
Brass 60 Deg Coned Lining
	37532	G1/8"	1/8" (4mm)	111321	£2.35
	37503	G1/4"	1/4" (6mm)	111322	£1.02
	37509	-	5/16" (8mm)	111323	£1.30
	37508	G3/8"	1/4" (6mm)	111324	£2.12
	37510	-	5/16" (8mm)	111325	£6.57
	37506	-	3/8" (9mm)	111326	£1.28
	37544	G1/2"	3/8" (9mm)	111328	£2.65
	37513	-	1/2" (13mm)	111327	£1.72
	37516	G3/4"	3/4" (19mm)	111329	£2.62
	37519	G1"	1" (25mm)	111330	£4.52
	37522	G1 1/4"	1 1/4" (32mm)	111331	£20.82
	37525	G1 1/2"	1 1/2" (38mm)	111332	£30.03
	37527	G2"	2" (51mm)	111333	£27.97
Brass Flat Lining
	37546	G1/8"	1/8" (4mm)	131561	£2.35
	37502	G1/4"	1/4" (6mm)	131562	£1.18
	37535	-	5/16" (8mm)	131563	£1.18
	37507	G3/8"	1/4" (6mm)	131564	£1.73
	37505	-	3/8" (9mm)	131565	£1.18
	37534	G1/2"	3/8" (9mm)	131566	£2.53
	37512	-	1/2" (13mm)	131567	£1.53
	37515	G3/4"	3/4" (19mm)	131568	£2.55
	37518	G1"	1" (25mm)	131569	£4.52
	36202	G1 1/4"	1 1/4" (32mm)	131570	£6.07
	36208	G1 1/2"	1 1/2" (38mm)	131571	£7.60
	36212	G2"	2" (51mm)	131572	£13.52
Brass Nut
	37545	G1/8"	-	111341	£2.28
	37501	G1/4"	-	111342	£0.78
	37504	G3/8"	-	111343	£1.23
	37511	G1/2"	-	111344	£1.78
	37514	G3/4"	-	111345	£3.68
	37517	G1"	-	111346	£5.77
	37520	G1 1/4"	-	111347	£12.63
	37523	G1 1/2"	-	111348	£11.72
	37526	G2"	-	111349	£12.80
Leather Washers for Flat Linings
	-	G1/8"	-	132891	£0.57
	37528	G1/4"	-	131573	£0.28
	37529	G3/8"	-	131574	£0.28
	36027	G1/2"	-	131575	£0.38
	36029	G3/4"	-	131576	£0.38
	36025	G1"	-	131577	£0.42
	36230	G1 1/4"	-	131578	£0.52
	36231	G1 1/2"	-	131579	£0.58
	36232	G2"	-	131580	£0.67

(All Prices Exclude VAT)
